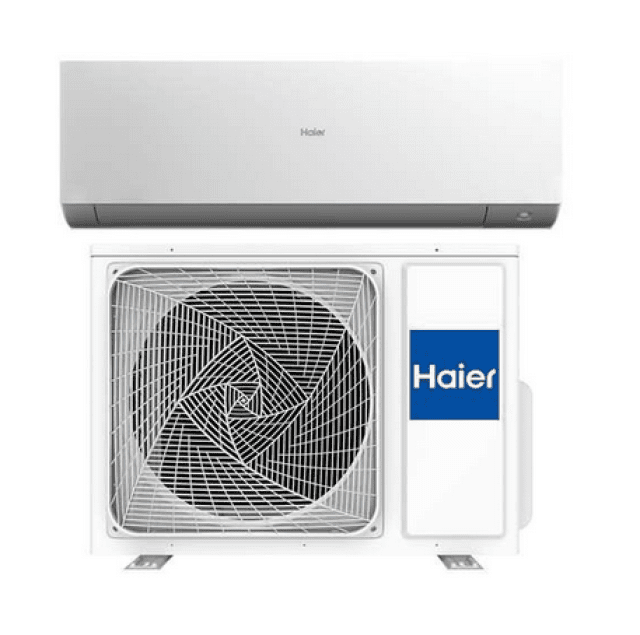

Haier Expert Air conditioner 2.5kW 1 Indoor and 1 Outdoor unit

Description

Technical data

• Refrigerant: R32
• Liquid pipe diameter: Ø 6.35 (1/4″) mm (inch)
• Diameter gas side: Ø 9.52 (3/8″) mm (inch)
• Pipe length without refill: 5 m
• Maximum pipe length: 20 m
• Maximum pipe height: 10 m
• Refrigerant charge: 0.52 kg
• Refrigerant charge: 0.35 tCO ² Eq
• Top-up: 20 g/m
• Operating range - cooling: min. - max. 21 - 35 °C (indoor)/-10 - 43 °C (outdoor) °C
• Operating range - heating: min. - max. 10 - 27 °C (indoor)/-15 - 24 °C (outdoor) °C
